ESCO 10-Ton Hydraulic Stak-Able Ram Kit with 1 Quart Pump

The high-quality ESCO 10-Ton Hydraulic Stak-Able Ram Kit is specifically designed for a wide range of heavy-duty applications in the tire/wheel service market and many more. The Stak-Able Ram Kit eliminates the tedious effort required to push rusted, corroded wheels off hubs. Ideal for stubborn 22.5″ and 24.5″ wheels, the Stak-Able Ram Kit is far more resilient and robust than any other equipment alike on the market. Designed for applications in heavy-duty commercial and OTR industry use. Use extensions within the kit separately or as a single long extension.

Kit Includes

• #10316 – 10-Ton Hydraulic STAK-ABLE Ram Kit
• #10508 – 1 Quart Manual Hydraulic Pump
• #10604 – 8′ Hose Assembly with Hose Coupler

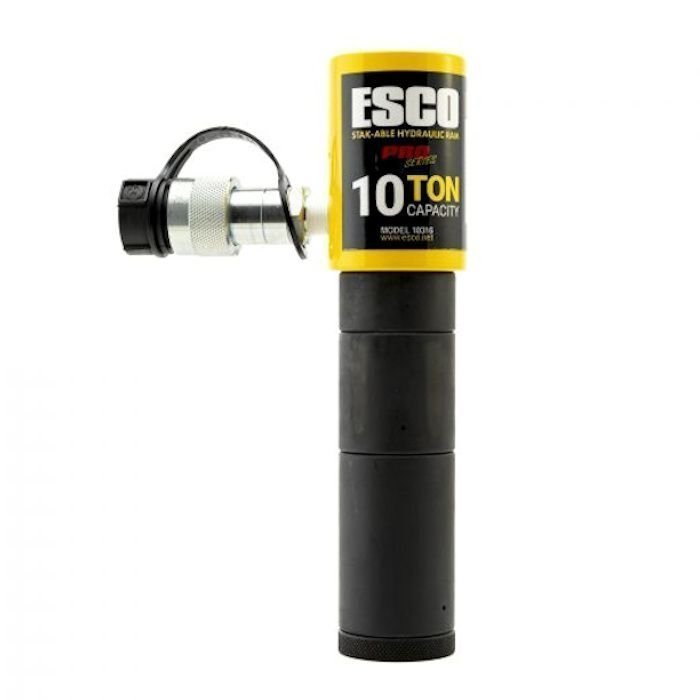

10-Ton Hydraulic STAK-ABLE Ram Kit Features

• Great For Use In Multiple Applications In The Tire/Wheel Service Market And Many More
• Ideal For Low Clearance Applications
• Used To Break The Back Bead By Pushing Off The Chassis On Heavy Duty Equipment
• Great For Loosening Seized Wheels From Back-End Of Vehicle On Heavy Duty Equipment
• Easy Snap-In Extensions
• Made Of High-Quality Steel
• Most Versatile 10-Ton Ram On The Market
• Easy To Switch Out Extensions For Optimal Extension Length

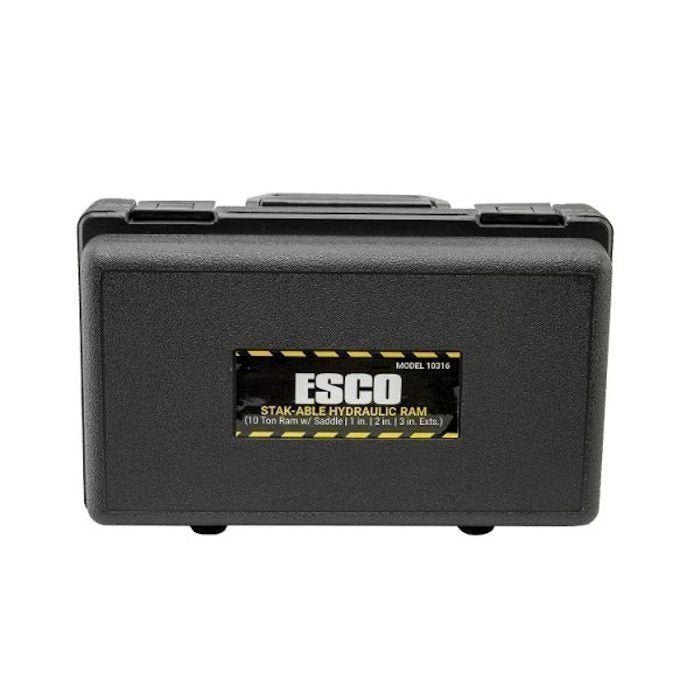

• Includes Carrying Case
• 3-Year Extended Warranty

10-Ton Hydraulic STAK-ABLE Ram Kit Specifications

• Capacity: 10 Tons (20,000 lbs.)
• Maximum Pressure: 10,000 psi
• Retracted Height: 3.5″
• Extended Height: 5″
• Maximum Height: 11.25″
• Stroke: 1.3125″
• Saddle: 0.375″

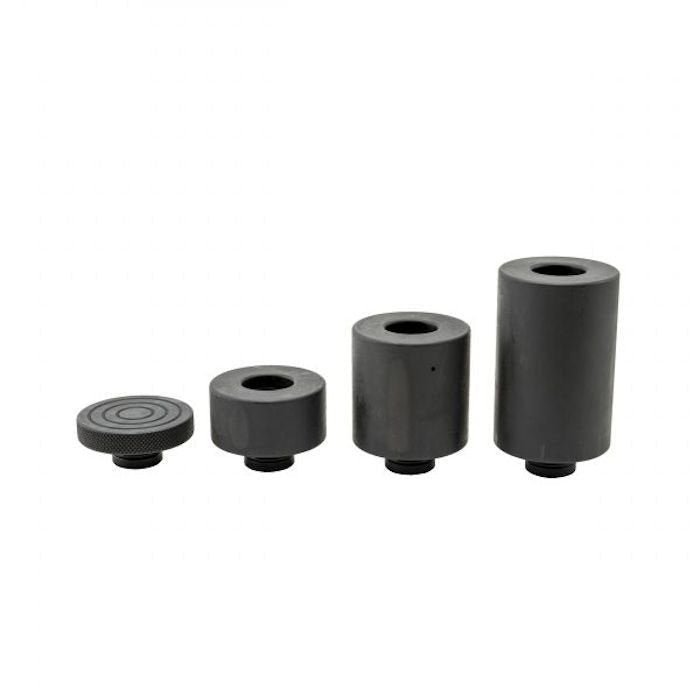

• Extension 1: 1″
• Extension 2: 2″
• Extension 3: 3″
• Weight: 10 lbs.
• Dimensions (Product Case): 12″ W x 5″ L x 5″ H
• Dimensions (Packaging): 12″ W x 10″ L x 5″ H
• Warranty: (3) Years Limited*

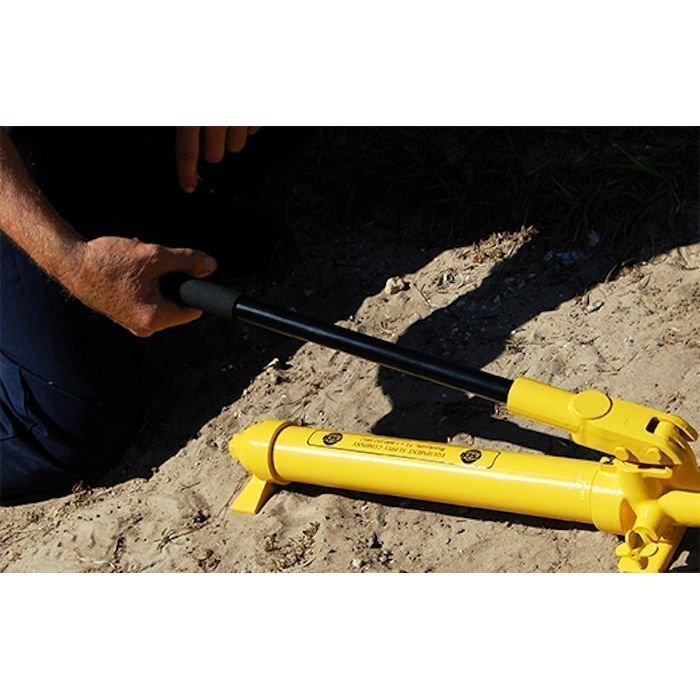

1 Quart Manual Hydraulic Pump Features

• Hand Operated Hydraulic Pump
• 1-Quart Oil Capacity
• 10,000 PSI Hydraulic Pressure
• Shipped With Premium Hydraulic Oil

1 Quart Manual Hydraulic Pump Specifications

• Oil Capacity: 1 Quart
• Material: Metal
• Max. Pressure: 10,000 PSI
• Weight: 14 lbs. (7 kg)
• Warranty: (3) Years Limited*

8′ Hose Assembly with Hose Coupler Features

• Hydraulic Hose With Swivel Fitting – Hose Won’t Kink
• Reinforced With Two Layers Of Braided Steel
• Withstands Extreme Temperatures of -40°F
• Use With Any 10,000 PSI Pump, Ram, Or Bead Breaker
• Includes Half Coupler

8′ Hose Assembly with Hose Coupler Specifications

• Hose Length: 8′ (96″)
• Max. Air Pressure: 10,000 PSI
• Type: 3/8″ 18 Male
• Attachments Included: Model #10605 Half Coupler
• Weight: 5 lbs. (2.2 kg)
