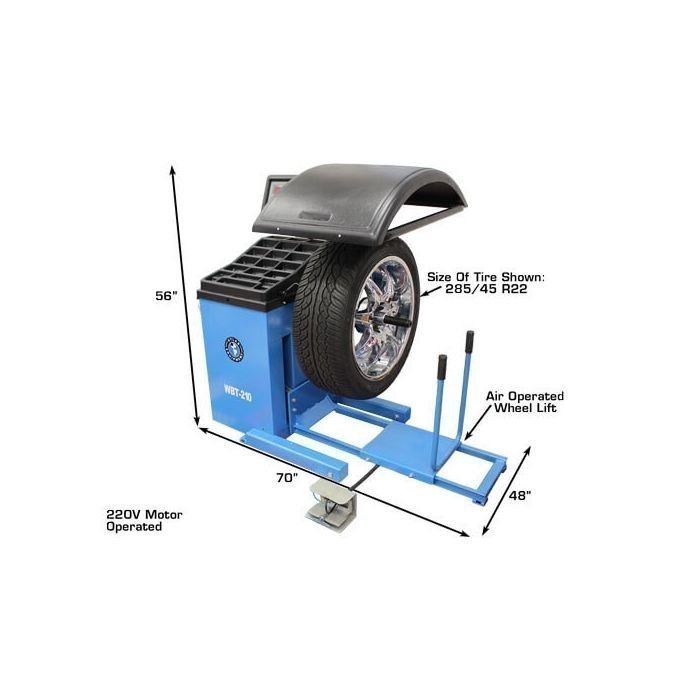

Atlas WBT210 Computer Truck Wheel Balancer with Wheel Lift
The Atlas WBT-210 Computer Truck Wheel Balancer with Wheel Lift is one of the best values in large truck tire computer balancers sold. This truck tire wheel balancer is priced thousands of dollars less than the Big Name brand truck tire wheel balancers and offers the same accuracy and reliability as the rest of the Atlas wheel balancer products.
The Atlas WBT-210 is the perfect wheel balancer for those shops that want one balancer that can balance a 14″ steel rim up to and including a 300 lbs. semi-truck tire. There are many large (32″) custom wheels and over-sized “gumbo-mudders” that can easily be balanced on the Atlas WBT-210 computer wheel balancer.
The Atlas WBT-210 is the perfect computer spin balancer for those trucking companies that operate everything from passenger cars to light trucks to over the road semi tractor/ trailer rigs. The 40 mm heavy duty shaft accommodates the standard mounting cones for most cars and pickup trucks. There are several large truck adapters included with the package that will allow the operator to mount and balance most BUDD style wheels.
The Atlas WBT-210 is a very simple, yet sophisticated wheel balancer. Each electrical component part is virtually “plug and play” so repair is easy when it is time to replace parts. The Atlas WBT-210 is capable of self-diagnosing problems and displays error codes so the operator can make the necessary adjustments or repairs in his own shop. There is no need to wait for the high priced service technician to visit your store. The simplicity of the Atlas WBT-210, both in ease of use and ease of repair, make this balancer the perfect choice for your shop.
FEATURES INFORMATION:
Universal Adapter
The Atlas Universal adapter can also be mounted on the Atlas WB-210 so that lug-centric wheels may be mounted (and balanced) properly.
CE Tested and Approved
The Atlas WBT-210 is the perfect balancer for the independent tire dealer or trucking company that wants the capabilities to balance “just about anything that comes in the door”. Call ASEdeals to find out more about the Atlas WBT-210 truck tire (and passenger tire) wheel balancer.
Newly Designed Computer Board
This Atlas Wheel Balancer uses a newly designed computer board system that makes replacement of the computer board as easy as plug and play. Many of the Asian manufacturers are using computer technology that is over ten years old. All of the Atlas balancers are implementing the newest and most reliable computer technology available. This improved technology is one of the many reasons that Atlas balancers will provide years of reliable service. This is a self-calibrating computer wheel balancer. There is no need to calibrate the balancer each morning when you turn it on.
Wheel Lift

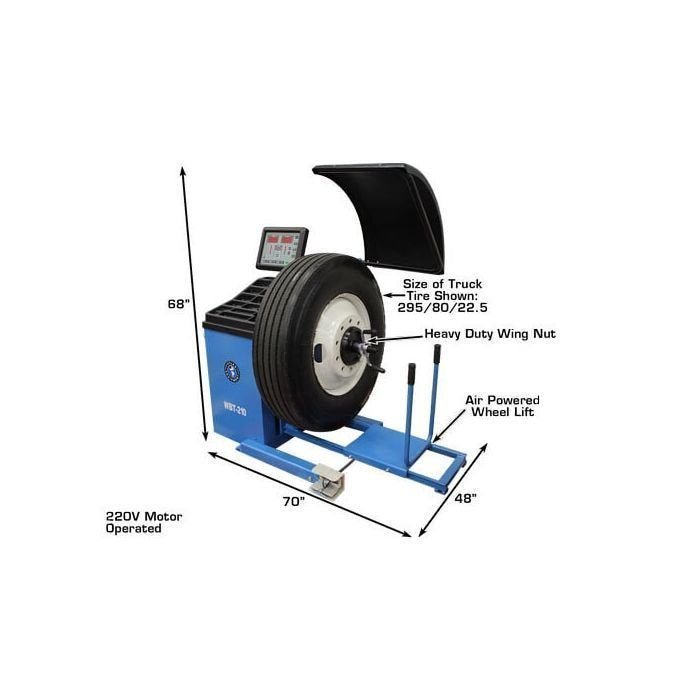

The air powered wheel lift raises the wheel assembly so that the center of the wheel can be aligned and mounted on the 40 mm shaft without experiencing any back strain. The lift operates smoothly and effortlessly so that the operator does not need to ask for additional shop help to raise and mount a 300 lbs. 24.5″ super single wheel assembly.
Features and Specs
Features
- Computer Controlled Heavy Duty Spin Balancer
- Cone Sets For Car And Light Truck Tires
- Cone And Spacer Set For Truck, Bus, Or Implement Tires
- Plastic Quick Release Nut Included
- Heavy Duty Steel Wing Nut Included
- Pneumatic Wheel Lift (External Air Supply Required)
- Automatic Start/Stop When Hood Is Lowered/Raised
- Static And Dynamic Balancing Modes
- Rapid Optimization (Opt)
- Self-Diagnosis
- Self-Calibration
- Exceptional Stability In Reading The Unbalance Between Planes
- Display In Grams Or Ounces, And In Mm Or Inches
- Wheel Weight Pliers Included
- Wheel Width Calipers Included
- CE Tested and Approved
- Replacement Parts & Wear Items Always In Stock
Specifications
- Max Tire Diameter: 47″
- Rim Sizes (Cars And Light Trucks): 10″-32″
- Rim Width: 1 1/2″-20″
- Shaft Size: 40mm
- Max. Wheel Weight: 440 lbs.
- Balancing Speed: 150 RPM Car-Light Truck Mode
- Balancing Speed: 90 RPM Truck Mode
- Data Entry: All Dimensions Manual Entry
- Measurements: Standard Or Metric
- Accuracy: 1 gram Car-Light Truck Mode
- Accuracy: 10 gram Truck Mode
- Weight Position Resolution: 1.4 Degrees
- Self Calibration: Yes
- Motor: 1/3 HP
- Air Requirement: 115-140 PSI (MUST NOT EXCEED 140 PSI)
- Power Supply: 220volt +/- 5% (209-231 volts) 1 Phase
- Electrical Requirement: 30 Amp Breaker Required
- Shipping Weight: 725 lbs.
- Warranty: (1) Year Limited Parts Only
Atlas (1) Year Limited Parts Only Warranty
This warranty covers any defects in manufacturing on your spray wash cabinet.
This warranty lasts (1) year from the date of purchase. Coverage terminates if you sell or otherwise transfer the spray wash cabinet during the period of the warranty.
Rust, or any problem that is caused by abuse, misuse, or an act of God is not covered in this warranty. The manufacturer should not be liable in either tort or contract for any loss or damage, direct, indirect, special, consequential, or incidental, arising out of the use or inability to use this product. Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you.
