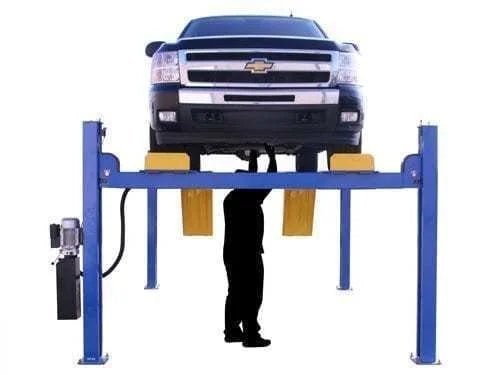

Atlas 14,000 lbs Commercial 4 Post Lift

Atlas 14,000 lbs Commercial 4 Post Lift

Original price was: 1.519,24 $.Current price is: 759,24 $.

The Atlas® 414 is a 4 post lift with 14,000 pounds of lift capacity designed for commercial use.

This lift is designed and built to commercial grade standards and will provide many years of service.

The Atlas® 414 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift.

Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.

Finally, the Atlas® 414 features “tracks” between the runways to allow the use of a rolling bridge jack (such as the Atlas® RJ8000BK) on the lift. Rolling jacks sold separately.

Features & Benefits

  • 14,000 lb. Capacity
  • Heavy Duty, Commercial Grade
  • Extra Tall, Extra Wide & Extra Long
  • Diamond Plated Runways
  • Air Operated Single Point Lock Release (External Air Supply Required)
  • Lock Ladder Design
  • Double Lock Safety System
  • Powder Coat Finish
  • Steel Approach Ramps Included
  • Additional Drive off Ramps Available (Sold Separately)
  • Runway Extensions Available (Sold Separately)
  • Mounting Hardware Included
  • 220volt/1phase Electric Operation (Requires a 30amp Breaker)
  • 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

Atlas® ATTD-414 Specifications

Capacity 14,000 lb.
Lifting Height 80″ (6′ 8″)
Overall Width Of Columns (Without Motor) 130 7/8″ (10′ 10 7/8″)
Overall Width Of Columns (With Motor) 138 7/8″ (11′ 6 7/8″)
Overall Length With Approach Ramp 255″ (21′ 3″)
Length Between Columns 197 1/4″ (16′ 5 1/4″)
Runway Length 208 5/8″ (17′ 4 5/8″)
Runway Width 20″
Thickness Of Runway 8 3/4″
Width Between Runways 46 7/8″ (w/ Rail 44 3/8″)
Outside Runway To Outside Runway 86 7/8″ (7′ 2 7/8″)
Clearance Under Runways 71 1/4″ (5′ 11 1/4″)
Clearance Between Columns 116″ (9′ 8″)
Height Of Columns 91 1/8″ (7′ 7 1/8″)
Maximum Wheel Base 197″ (16′ 5″)
Drive Thru 102 1/8″ (8′ 6 1/8″)
Air Requirement 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
Motor/Electrical Requirement 220 volt single (1) phase.A 30 amp breaker is recommended
Oil Requirement 3-5 GallonsAW32/AW46 (NOT INCLUDED)
